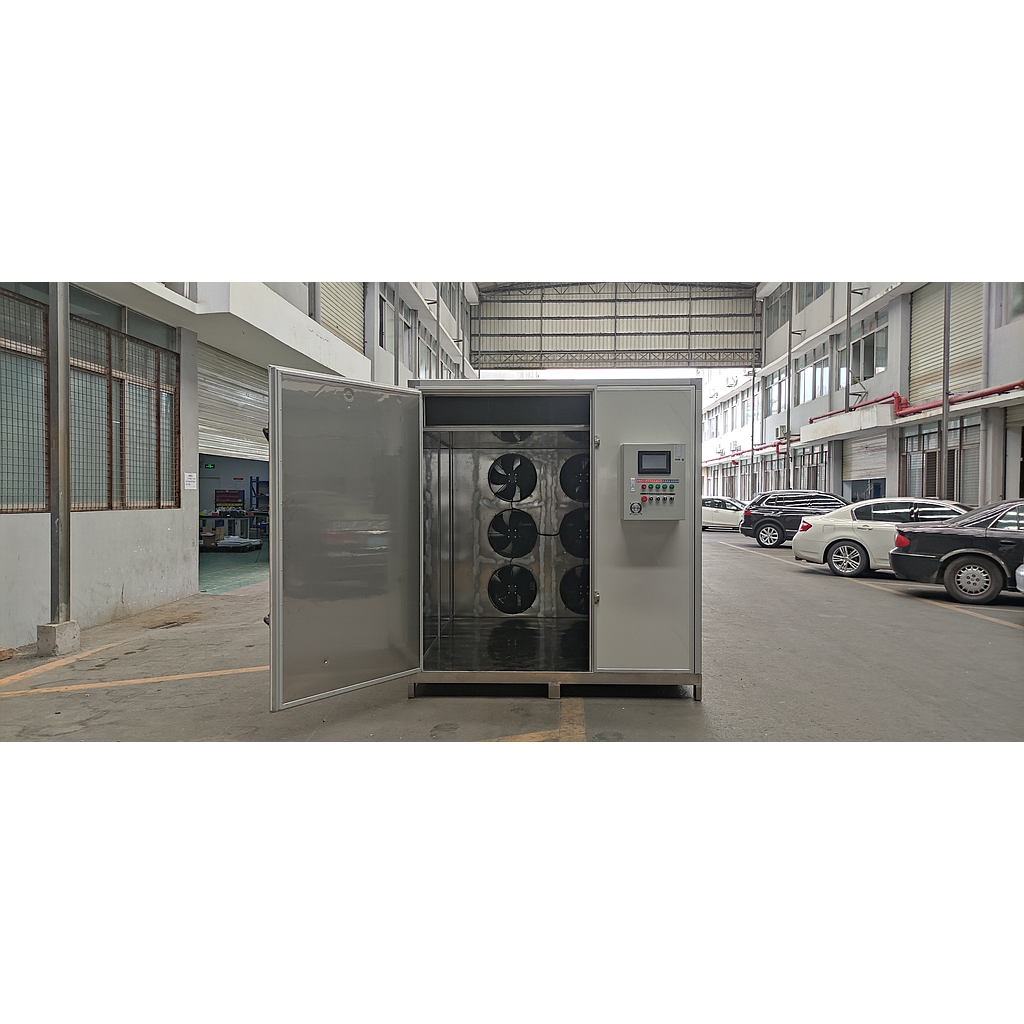

7P Integrated Drying Room, SUS 304, 4700*2000*2100mm

Material: Polyurethane(T=5cm)+SUS 304(Solid thickness=0.35cm)+external insulation layer;
Compressor: Yinghuat / Copeland;
Technical performance parameters
Number of units: 7;
Rated heat capacity: 18kw;
Rated power: 5.2kw;
Maximum power: 15kw;
Rated current: 9.2A;
Auxiliary electric heating: 6kw;
Maximum air temperature：75℃;
Dehumidifying capacity: 18L/H;

Circulating fan
Circulating air volume: 7500m³/H;
Rated power: 1.5kw;
Rated current: 3A;

Voltage: 380V/50Hz;
Ambient temperature range：-15~38℃;
Appearance size: 4700*2000*2100mm;
Using space：3350*1900*1650mm;
Weight: 1200kg;
The host adopts fully intelligent control system, no need to be manned.
