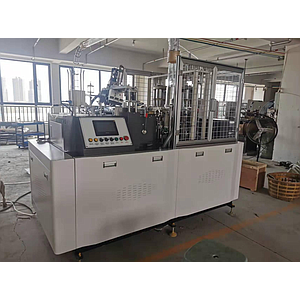

Low speed paper cup machine, 45-55 PCS / min, Customizable paper cup specification range 3-12oz (single specification), 380V 50Hz / 220V 50Hz, 6KW

Paper specifications:Customizable paper cup specification range 3-12oz (single specification)
Paper cup material :160-340g/㎡（PE）
Production speed :45-55 PCS / Min
The power supply :380v 50Hz / 220 50HZ
The total power :6KW
Air supply :0.2-0.3m³/min
Material: The main body is stainless steel
The weight :1500kg
Overall dimensions :2000x1200x1600mm（LxWxH）

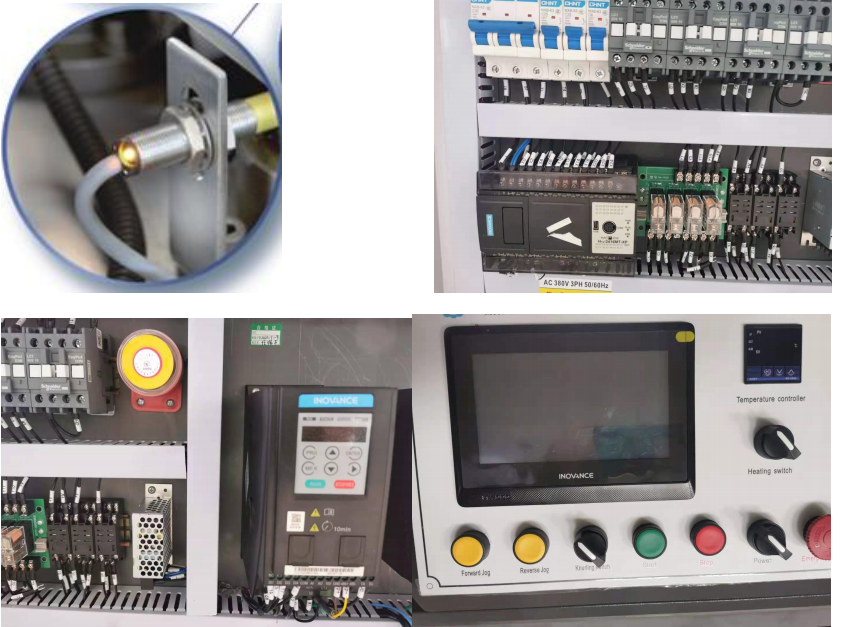

Main electrical configuration:
Proximity switch :Autonicus
Photoelectric switch :Autonicus
Push button switch :Chint
Relay :Chint
Miniature circuit breaker :Chint
The inverter :INOVANCE
TOUCH SCREEN :INOVANCE
PLC: INOVANCE
Contactor :schneider
Medallion power :MingWei
Temperature control table :YATAI
Crimping machine :ZHIBAO
Main reducer :ZHONGLONG
Open groove CAM :SHANDONG

This paper cup machine is based on the vertical axis paper cup machine. Through innovation and improvement, the stability and production speed of the whole machine have been greatly improved.Through the continuous process of automatic paper feeding, medium sealing, cup edge lubrication, top edge curling, cup bottom flushing, cup bottom heating, rolling, finished product blowing, etc., it is suitable for the production of cold and hot beverage paper cups and ice cream paper cups with single and double film.

The integral steel body and the lubricating system of the oil spraying type ensure the long-term normal and stable operation of the equipment; (The bottom of the machine has automatic refueling system, automatic filtration, automatic lubrication, no manual refueling, hygienic and quick) Gear transmission, cylindrical barrel type indexing groove wheel, optimize the internal layout, ensure the machine transmission accuracy, high synchronization performance, so as to achieve the coordination between the stroke, avoid collision damage parts, make up for the chain transmission shaking and transmission instability congenital deficiency

The motor tracks the feeding paper to lock the size of the cup bottom paper, effectively saving raw materials;
